GraspAuto: Real-Time Single-Tap Grasp Authoring for VR/AR Experiences

GraspAuto generates realistic hand grasps on ten objects, two taps each. A single deployable checkpoint produces every pose; the scene rotates so the contact configuration is visible from multiple angles.

Abstract

GraspAuto is a method for generating a realistic VR hand grasp from a single user tap on a 3D object, producing a controllable pose that conforms to the indicated contact point without motion-capture recording or per-joint tuning. Inference fits within a standalone VR headset's latency budget, so the same system serves content creators as an offline grasp-authoring tool and VR applications as a live hand-synthesis module at runtime.

The key idea is a geometric conditioning token, a grip-sphere specifying where to grasp, how wide to open, and from which direction to approach, easy to elicit from a VR controller and dataset-agnostic enough for joint training across grasp corpora. On ContactPose, a single GraspAuto checkpoint transfers to never-seen object classes roughly twice as reliably as a heatmap-conditioned baseline with the same backbone and training data.

Approach

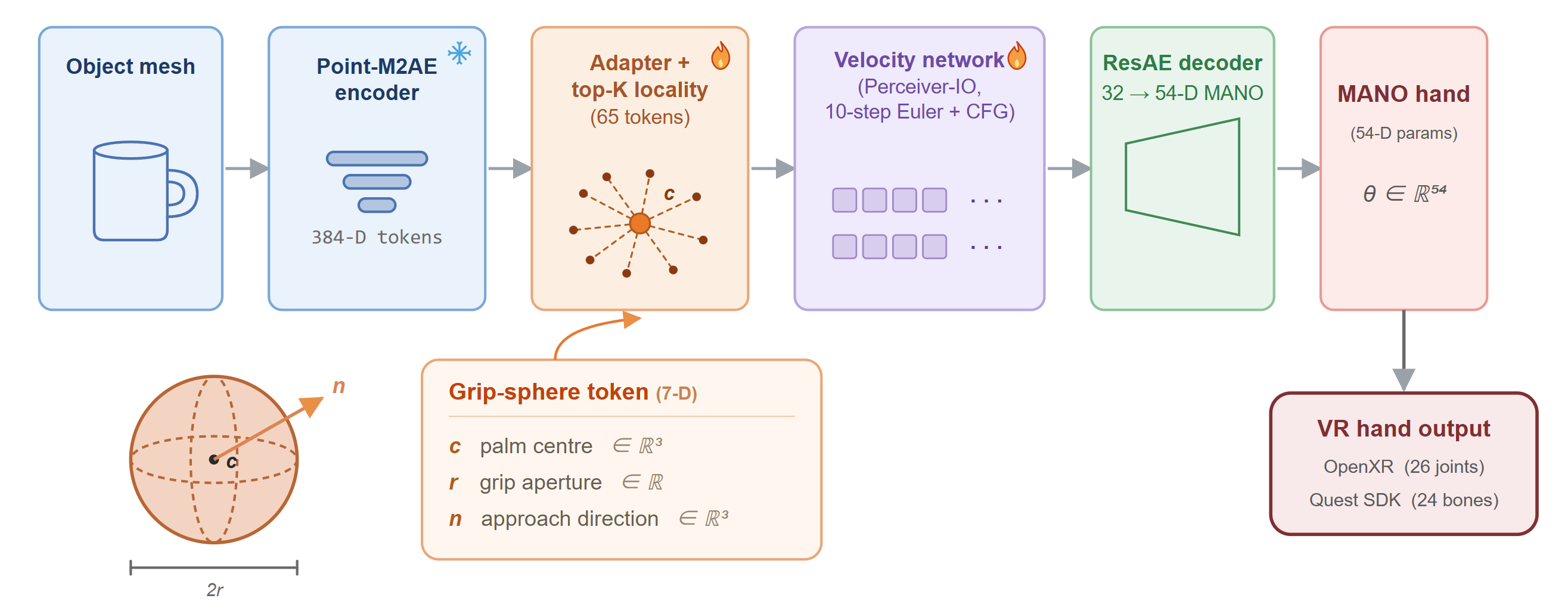

GraspAuto pipeline — **Pipeline.** A frozen Point-M2AE encodes the object mesh into 64 patch tokens; the adapter fuses them with the 7-D grip-sphere (palm centre c, aperture r, approach direction n) through top-K tap-centered locality gating. A Perceiver-IO velocity network samples in a 32-D latent space via conditional flow matching, which the ResAE decodes to MANO parameters and a VR hand pose in OpenXR or Quest SDK format.

Why the grip-sphere? Earlier generators relied on per-dataset heatmap statistics that could not transfer between ContactPose, OakInk, and GraspXL. The 7-D grip-sphere is deterministic from any MANO-annotated sample, which flips multi-dataset mixing from a 6–10 mm regression under the old token to monotone improvement (12.36 → 11.70 → 10.64 mm bo-1 TRUE SEEN) as data quality rises.

Tap-Conditioned Controllability

Controllability: different tap locations on a mug and hammer — Three tap locations on a mug (top) and a hammer (bottom). The inset mini-map marks each tap in yellow. All six grasps come from a single GraspAuto checkpoint (bo-64 selector-picked); r is the grip aperture in millimetres.

Results

Mode-cover error (mm) on ContactPose. We report TRUE SEEN on 21 object classes (N=179 samples) and CP-UNSEEN on the remaining 4 classes (bowl, headphones, toothbrush, wine_glass; 37 samples). Both subsets use participants disjoint from training; CP-UNSEEN is a per-class reporting split, not a class-level holdout. Latency quoted for Quest 3 is projected from an RTX 4090 measurement (34 ms, scaled conservatively).

Config	TRUE SEEN	CP-UNSEEN	<10 mm	Latency
Codebook retrieval (ours, baseline)	62.3	-	0%	5 s
Heatmap-palm distill student	12.48	27.9	36%	60 ms
Sphere, CP-only	12.36	15.92	45%	60 ms
Sphere, CP + OakInk mix	11.70	14.86	55%	60 ms
Sphere, CP + OakInk filtered (shipped)	10.64	13.70	59%	60 ms
8-member pool, GT oracle (mean)	6.13	7.58	89%	30 s
median	5.14	6.79	-	-
Consensus medoid (deployable, no GT)	9.74	12.71	67%	2 s

Swapping the 11-D heatmap token for the 7-D grip-sphere cuts CP-UNSEEN bo-1 error from 27.9 to 13.70 mm (a 51% reduction) while keeping the single-checkpoint student real-time at 60 ms/tap.

Code & Weights

The reference implementation (training, evaluation, ONNX export) and trained weights are available in this repository: github.com/crazycatseven/GraspAuto. The Unity Sentis integration for on-device VR deployment will be released soon. For questions or research-artefact access, please contact the authors directly.
